PRODUCT DESCRIPTION

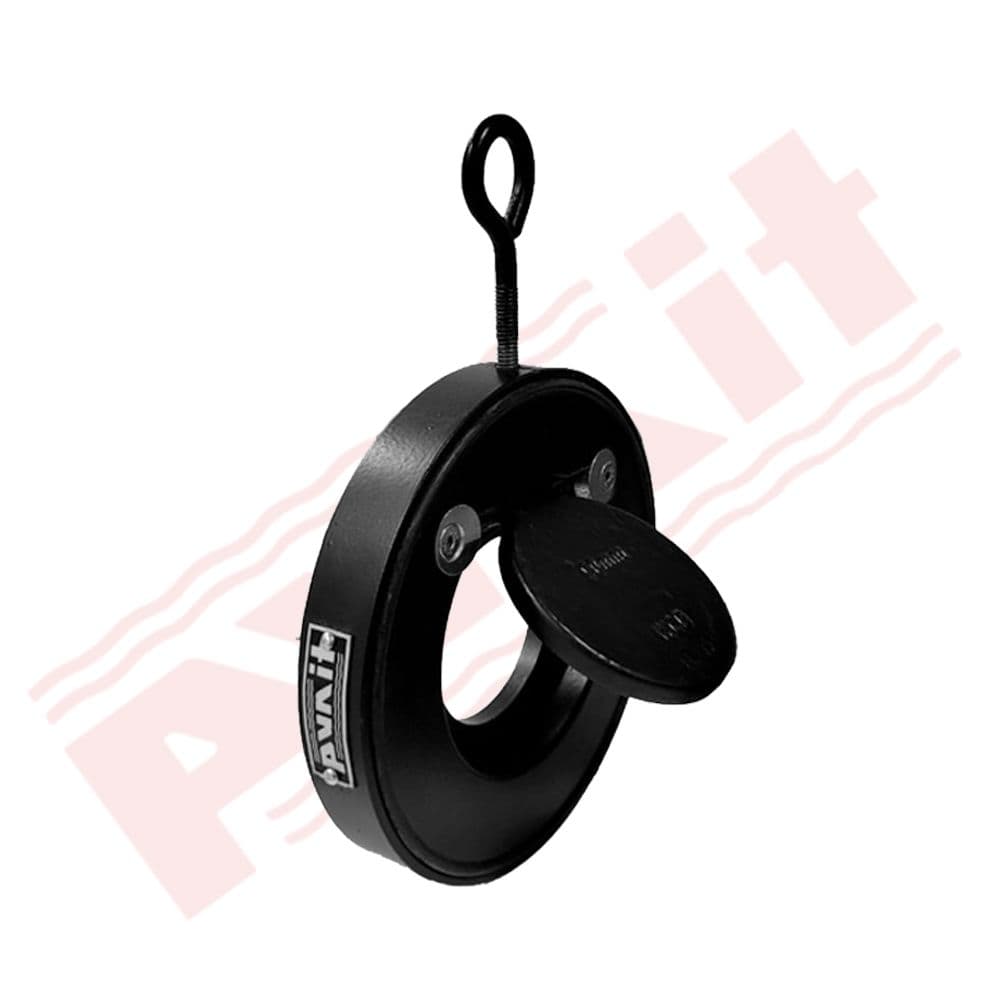

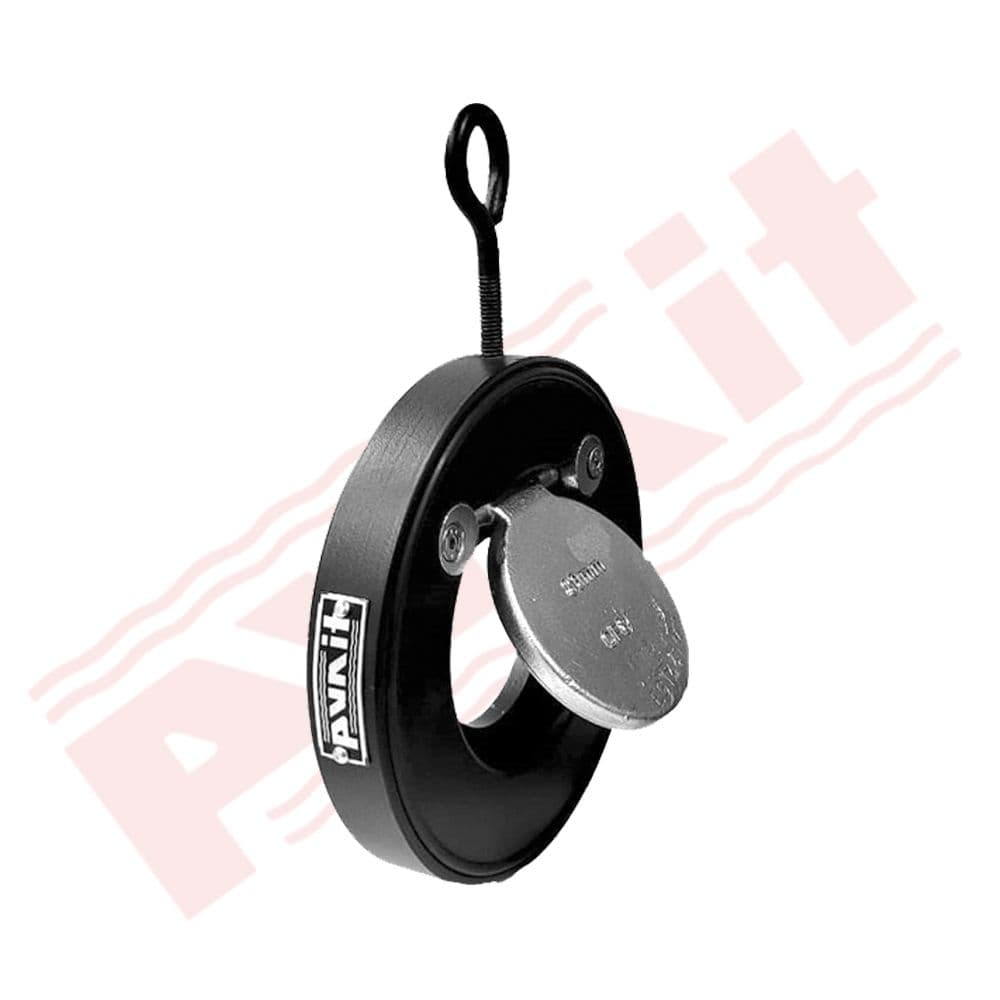

A wafer type single plate check valve also known as wafer type swing check valve is a compact, lightweight non-return valve designed to prevent backflow in pipelines. It features a swinging disc that opens with forward flow and closes when flow reverses. Ideal for horizontal as well as vertical installations.
TECHNICAL SPECIFICATIONS
Size Range | 50 MM to 600 MM (2” To 24”) |
Temperature Range | -40° C to +180° C |
Pressure Rating | PN10, PN16 |
Design Standard | As Per API 594 |
Face To Face | As Per API 594 |
Testing | As per API 598 |
Leakage Class | Class VI |
Operation | Self-Actuated |
End Connection | Wafer End |
