PRODUCT DESCRIPTION

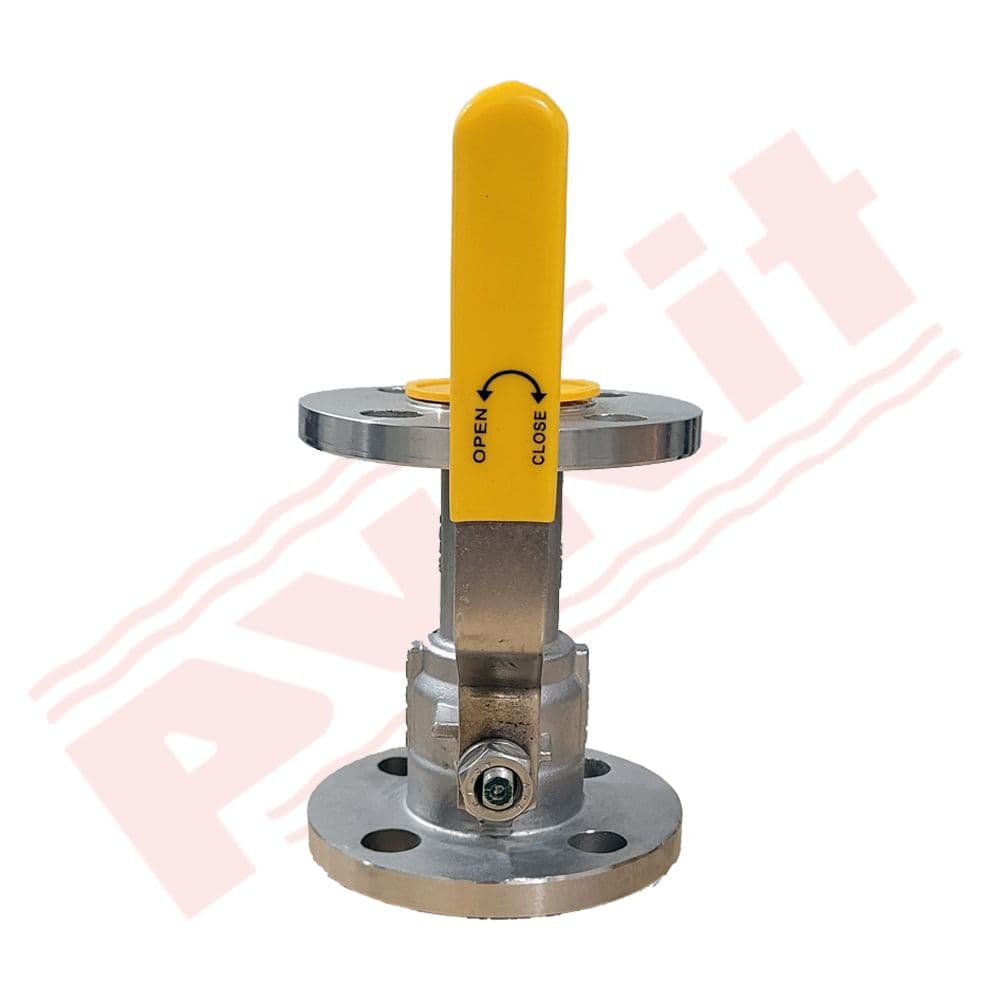

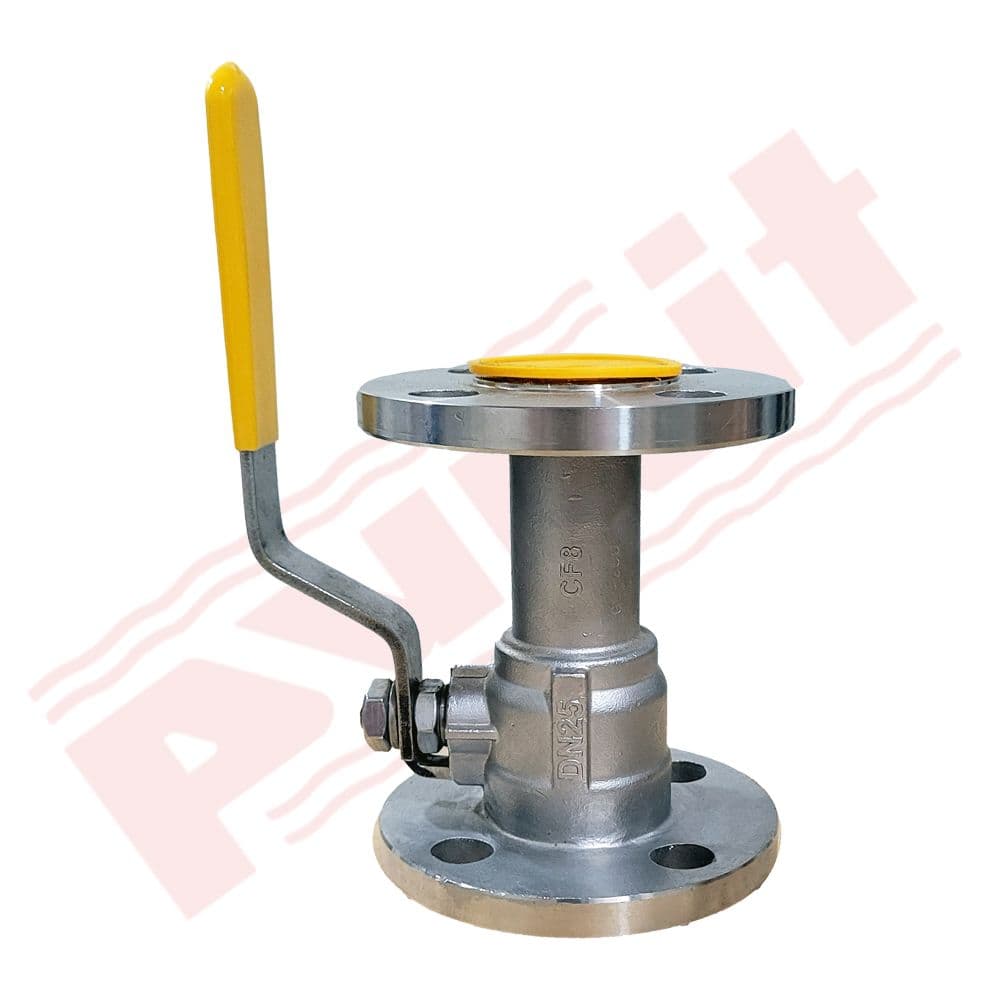

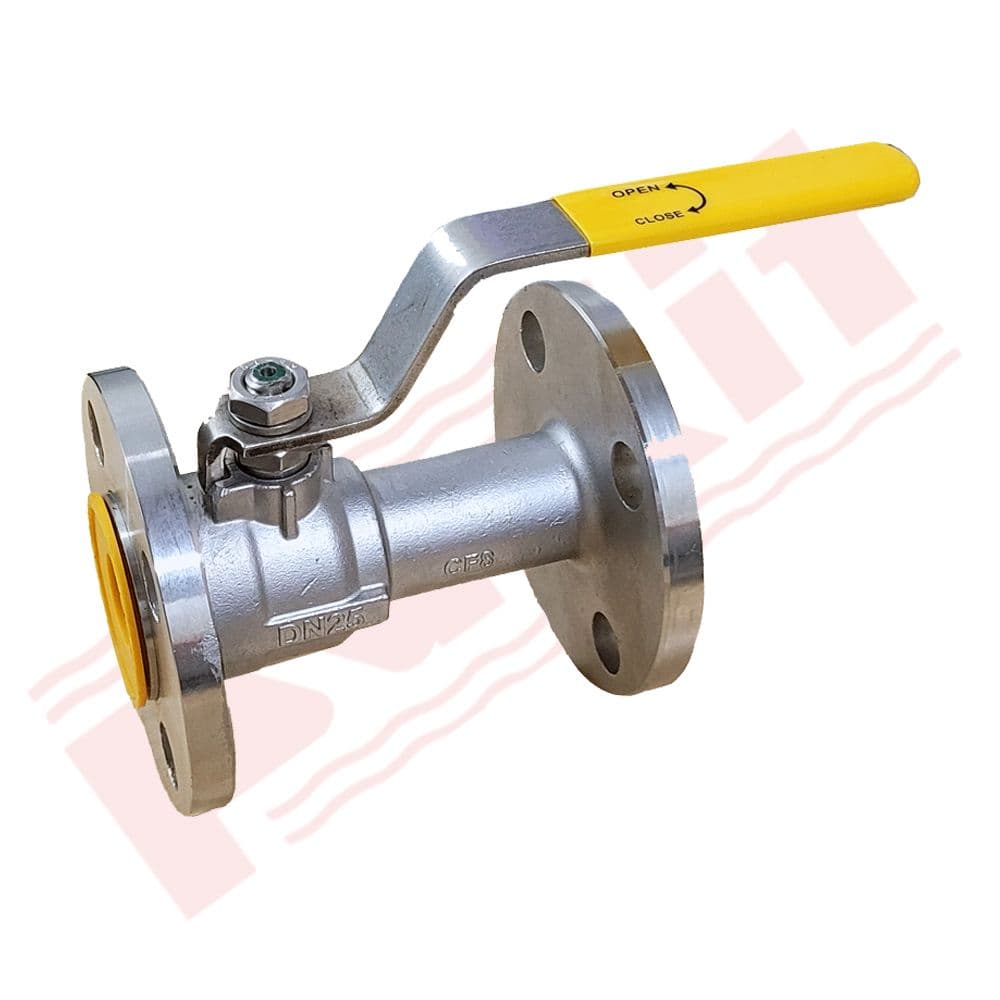

1- Piece flange end ball valves are widely used in various industries. Its design makes them compact, cost effective and leak resistant compare to 3-piece design.
TECHNICAL SPECIFICATIONS
Size Range | 25 MM to 100 MM (1” To 4”) |
Temperature Range | -40° C to +180° C |
Pressure Rating | Class 150 |
Design Standard | As Per ISO 17292 / BS 5351 |
Face To Face | As Per ASME B 16.10 |
Testing | As per API 589 |
Leakage Class | ISO 5208 Class VI |
Operation | Manual Hand Lever,Gearbox,Actuated |
End Connection | Flanged end suitable to mount between ASME B16.5 Flanges |
BALL VALVE
